| DIN connector |
|
A family of plugs and sockets used to connect mice and keyboards to the computer. DIN connectors are also widely used in the audio world. See DIN and DIN radio.
Keyboards and Mice

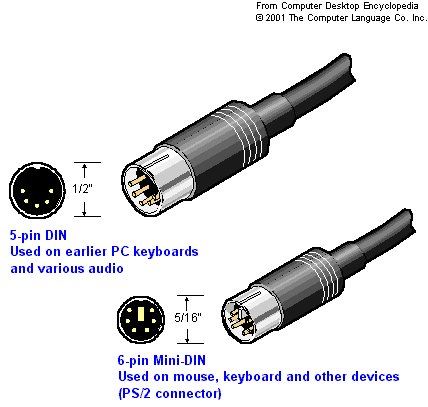

The first two generations of PC keyboards (PC and AT keyboards) used a 5-pin DIN connector. The smaller 6-pin Mini-DIN connector replaced the 5-pin "AT" connector, and 6-pin to 5-pin adapters were commonly used to attach a new keyboard to an old PC. The 6-pin Mini-DIN also replaced the serial port for mice. See PC keyboards.
Adapters switch between these two DIN types so your new keyboard can work with your old PC or your old keyboard can work with a newer PC or laptop, which uses the 6-pin Mini-DIN socket.
|
|
|
