| PN junction |
|
The interface at which p-type silicon and n-type silicon make contact with each other. At this coupling point, free electrons (n-type) and holes (p-type) cancel each other and form a "depletion zone" that acts as a non-conductive barrier. The PN junction is one of the primary building blocks of semiconductors.

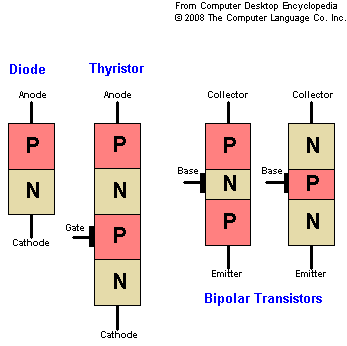

Diodes and Thyristors
A diode (one way valve) is a PN junction with p-type on one side and n-type on the other. When a positive voltage is applied to the p-type side (forward bias), it shrinks and overcomes the depletion zone, causing the current to flow from the p-type to the n-type side. When a negative voltage is applied to the p-type of the diode (reverse bias), it increases the depletion zone and prevents current from flowing. See diode.
Built like two diodes in a row (three PN junctions) but with a third terminal, a thyristor is a one-way valve that, once turned on, lets current flow until it falls below a certain threshold (see thyristor).
Bipolar Transistors
Double PN junctions are used to build bipolar transistors. These p-type/n-type bipolar "sandwiches" are called "PNP" and "NPN" transistors. See bipolar transistor and n-type silicon.
Placing p-type silicon next to n-type silicon is the primary way many semiconductor devices are constructed. The field effect transistors (FETs) in CMOS chips also use n-type and p-type silicon, but are designed differently (see
|
|
|
