Teardown: A Look Inside Apple's iPad Mini

By Edward J. Correia CRN
10:30 AM ET Mon. Nov. 12, 2012
< Previous | 1 | 2 | 3 | 4 | 5 | ... 6 | Next >

Lots Of Hot Air

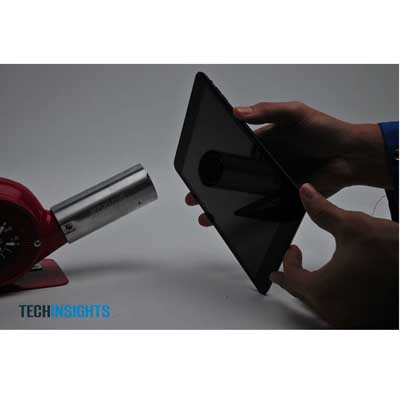

Getting inside the iPad mini will require lots of hot air. The unit's touch screen is held in place by a plastic bezel that's secured by generous portions of industrial adhesive. So break out the blow drier and concentrate the heat on one edge at a time. Once one side is heated up, slide a thin plastic card between the bezel and the aluminum unibody. Then go to work on the other sides until the bezel can be gently removed. Careful, there's a ribbon cable that connects the touch panel to the main board. Either remove it or just fold the panel out of the way (as shown).
